HBL5965VY HWD

Name: HBL5965VY HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL5965VY HWD
Price: 14.29 USD
Availability: InStock

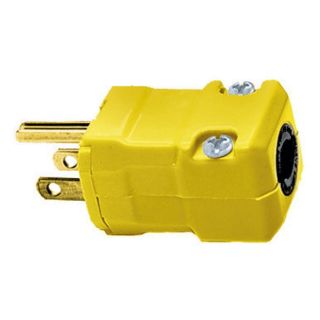

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL5965VY

CBT Inventory

106

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$14.29 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Male Standard

Alternate Supplier #

Grainger - 4A253

Description

Wiring Device-Kellems Valise® Straight Blade Plug, 1-Phase Grounding Male Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15P, Commercial/Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite/Nylon, Yellow, 1.88 in L x 1.5 in W x 1.13 in H

Application

Dry Location and Indoor Applications

Standards

UL 498 File No. E1706 | CSA C22.2 No. 42/280 | UL94 V-2 Flammability Rating | NEMA WD1/WD5

Features

All portable cord
Cord mounted
Withstands 2000 VAC minimum dielectric voltage
Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
16 to 10 AWG copper stranded or solid wire size
0.06 in brass contact blades, 0.04 in brass
Steel (copper or nickel finish) terminal screw, steel (green finish) ground screw
Hinged 1-piece body design for easy assembly
Powerful, offsetting cord grips clamp on individual conductors
Assembly screws are captive and will not fall out while wiring
Nylon housing, noryl (polyphenylene oxide) cord clamp

Specifications

Amperage Rating:	15 A
Color:	Yellow
Cord Diameter:	0.22 to 0.66 in
Country of Origin:	US
Dimensions:	1.88 in L x 1.5 in W x 1.13 in H
Enclosure:	IP20
Grade:	Commercial/Industrial
Horsepower:	1/2 hp
Material:	Composite/Nylon
NEMA Rating:	5-15P
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
