HBL5969VY HWD

Name: HBL5969VY HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL5969VY HWD
Price: 29.14 USD
Availability: InStock

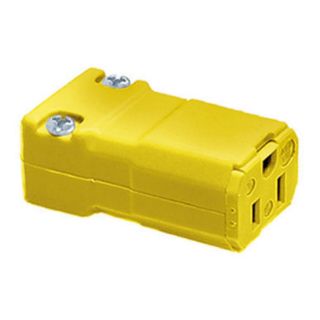

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL5969VY

CBT Inventory

Vendor Inventory

Availability:

10 in stock

Estimated dates are contingent upon manufacturer stock.

$29.14 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Female Grounding Insulated Cord Mount

Alternate Supplier #

Grainger - 4A254

Description

Wiring Device-Kellems Valise® Straight Blade Connector, Female Grounding Insulated Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 2.68 x 1.32 x 2.68 in

Standards

UL 498 File No. E1706 | CSA C22.2 No. 42 | UL94 HB Flammability Rating | NEMA WD1/WD5 WD6

Features

#8-32 brass, multiple drive terminal screw
Phosphor bronze power contacts
Withstands 2000 VAC minimum dielectric voltage
Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
18 to 12 AWG copper stranded or solid wire size
Hinged 1-piece body design for easy assembly
Powerful, offsetting cord grips clamp on individual conductors
Assembly screws are captive and will not fall out while wiring
Cord mounted

Specifications

Amperage Rating:	15 A
Color:	Yellow
Cord Diameter:	0.22 to 0.66 in
Country of Origin:	CN
Dimensions:	2.63 in L x 1.25 in W x 1.13 in H
Enclosure:	IP20
Grade:	Commercial/Industrial
Horsepower:	1/2 hp
Material:	Composite
NEMA Rating:	5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
