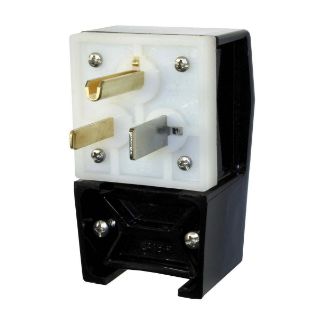

HBL9368 HWD

Name: HBL9368 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL9368 HWD
Price: 103.19 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL9368

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$103.19 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase 4-Position Angled Grounding Heavy Duty Male Standard

Alternate Supplier #

Grainger - 6C119

Description

Wiring Device-Kellems Insulgrip® Straight Blade Plug, 1-Phase 4-Position Angled Grounding Heavy Duty Male Standard, 250 VAC, 50 A, 3 hp, 2 Poles, 3 Wires, NEMA 6-50P, Commercial/Industrial Grade, IP20 Enclosure, 0.625 to 1.187 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite/Nylon, Black/White, 4.33 in L x 2.75 in W x 1.88 in H

Standards

UL 498 File No. E1706 | CSA C22.2 No. 42/280 | NEMA WD1/WD5

Features

All portable cord
Cord mounted
Withstands 2000 VAC minimum dielectric voltage
Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
12 to 4 AWG copper stranded or solid wire size
0.06 in brass contact blades, 0.078 in ground contact blade
Steel zinc plated terminal screw, plated steel ground screw, brass box terminal
Reinforced thermoplastic polyester blade holder, retainer and cord clamp

Specifications

Amperage Rating:	50 A
Color:	Black
Cord Diameter:	0.625 to 1.187 in
Country of Origin:	PR
Dimensions:	4.33 in L x 2.75 in W x 1.88 in H
Enclosure:	IP20
Grade:	Commercial/Industrial
Horsepower:	3 hp
Material:	Composite/Nylon
NEMA Rating:	6-50P
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	250 VAC
