HBLS430C7W HWD

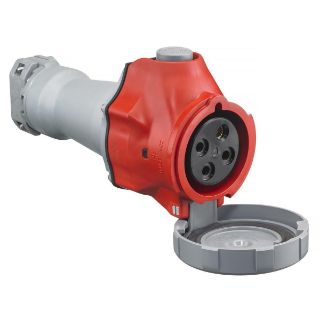

Picture of HBLS430C7W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBLS430C7W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$662.38 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Female Heavy Duty Non-Metallic Standard Switched Watertight Cord Mount

Alternate Supplier #

Grainger - 44ZD56

Description

Hubbell® Wiring Device-Kellems Advantage™ series pin and sleeve switch rated devices are IEC 60309-2 compatible devices that are approved as a disconnecting means for motor and branch circuits. Compact design, this device is similar in size to standard IEC 60309-2 devices. Robust and durable housing, UV-stabilized, impact and corrosion resistant PBT housing is designed to withstand harsh industrial environments. Stainless steel hardware provides superior corrosion resistance in wet and harsh environments Receptacles mount to standard Hubbell® IEC Pin and Sleeve back boxes.
Wiring Device-Kellems, HBLS430C7W, Pin and Sleeve Connector, 3-Phase Female Heavy Duty Non-Metallic Standard Switched Watertight Cord Mount, Series: Advantage™, 480 VAC, 30 A, 20 hp, 3 Pole, 4 Wires, 4X NEMA Rating, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Brass, Red, 9.9 in L x 4.5 in W Dimensions

Application

Industrial and Commercial Applications

Standards

UL 498 | CSA Certified | IEC 309 File No. 60309 | RoHS Compliant | UL/cULus Listed | CSA C22.2 No. 0.17 | UL94 HB Flammability Rating

Features

  • Rugged 1-piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants
  • IEC pin and sleeve devices are color coded by voltage for easy identification
  • Ease of use
  • Spring loaded disconnect button oversized for easy actuation with gloved hands
  • Heavy duty external cord grips for maximum cord retention
  • Spring loaded cover to the open position, reminding users that the cover must be secured to ensure maximum ingress protection

Specifications

Amperage Rating:30 A
Color:Red
Country of Origin:PR
Dimensions:9.9 in L x 4.5 in W
Enclosure:IP67
Horsepower:20 hp
Material:Brass
NEMA Rating:4X
Number of Poles:3
Number of Wires:4
Series:Advantage™
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:480 VAC
