HBLS430R7W HWD

Name: HBLS430R7W HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBLS430R7W HWD
Price: 648.31 USD
Availability: InStock

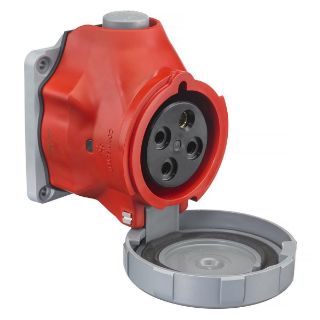

Wiring Device-Kellems HBLS430R7W Advantage™ 3-Phase Heavy Duty Non-Metallic Switched Cord Mount Watertight Pin and Sleeve Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Red

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBLS430R7W

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
2	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$648.31

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Heavy Duty Non-Metallic Switched Cord Mount Watertight

Alternate Supplier #

Grainger - 44ZD58

Description

Wiring Device-Kellems, HBLS430R7W, Pin and Sleeve Receptacle, 3-Phase Heavy Duty Non-Metallic Switched Cord Mount Watertight, Series: Advantage™, 480 VAC, 30 A, 20 hp, 3 Pole, 4 Wires, NEMA 4X NEMA Rating, Commercial/Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Brass, Red, 3.83 in L x 4.5 in W x 3.75 in H Dimensions

Standards

Features

Pocketed recess for screws deters slippage of the screwdriver and are conveniently located on the same side for easy installation
Robust and durable housing the UV stabilized, impact and corrosion resistant PBT housing is designed to withstand harsh industrial environments
Compact design device is similar in size to standard IEC 60309-2 devices
Receptacles mount to standard Hubbell® IEC pin and sleeve back boxes
Stainless steel hardware provides superior corrosion resistance in wet and harsh environments
Advantage™ Series Switch-Rated pin and sleeve has superior water ingress protection, UL witnessed IP69k and UL type 4X and 12, device is built to withstand wet and harsh environments
The sleek and modern design of the ergonomic device is easy to keep clean making it ideal for hygienic food processing facilities
Power indicating LED lights provides visual verification of power when connected
Impact resistant cover arm compact, durable internal swing arm is fully shrouded, protecting it from damage
Spring loaded disconnect button oversized for easy actuation with gloved hands
Ergonomic design Hubbell® puts the Advantage™ into the palm of your hands with the easy to use leverage grip design from Hubbell®
Spring loaded cover to the open position, reminding users that the cover must be secured to ensure maximum ingress protection
Heavy duty external cord grips provide maximum cord retention to maintain unstressed terminations

Specifications

Amperage Rating:	30 A
Color:	Red
Country of Origin:	PR
Dimensions:	3.83 in L x 4.5 in W x 3.75 in H
Enclosure:	IP67
Grade:	Commercial/Industrial
Horsepower:	20 hp
Material:	Brass
NEMA Rating:	NEMA 4X
Number of Poles:	3
Number of Wires:	4
Series:	Advantage™
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	480 VAC
