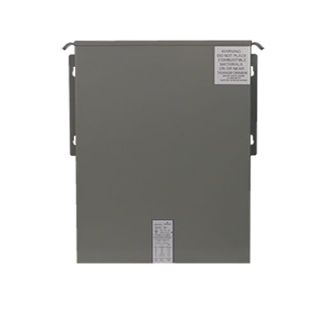

Actual Product May Vary From Image

HS10F3AS SHD

Name: HS10F3AS SHD
Brand: SolaHD (Emerson)
SKU: HS10F3AS SHD
Price: 925.12 USD
Availability: InStock

3KVA 600-120/240

Manufacturer: SolaHD (Emerson)

Manufacturer part number: HS10F3AS

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$925.12

Qty:

Product Details

Brand Name

SolaHD

Type

Automation Transformers - Non-Ventilated 50 VA to 45 kVA

Description

Non-Ventilated Automation Transformers, 3 kVA, Primary Amps: 5.0, Secondary Amps: 25.0/12.5, Primary Volts: 600. Volts Secondary: 120/240, Frequency: 60HZ, Single Phase

Application

SolaHD encapsulated transformer rated for harsh industrial environments

Standards

cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66

Features

UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure.

Specifications

Country of Origin:	US
Enclosure:	NEMA 3R, Class 1 Div 2 Group A,B,C and D
Frequency Rating:	60 Hz
Height:	12 in
Input Voltage:	600 Volts Primary VAC
KVA Rating:	3
Length:	7 in
Maximum Input Current:	3.33 A
Maximum Output Current:	16.7/8.33 AMP
Number of Phases:	1
Output Voltage:	120/240 Volt Secondary
Temperature Rating:	115 DEG C Temperature Rise Under Full Load
Wattage:	2,000 W
Width:	10 in
