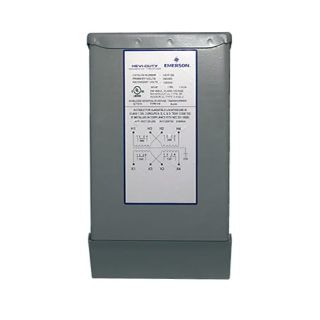

Actual Product May Vary From Image

HS14F1BS SHD

Name: HS14F1BS SHD
Brand: SolaHD (Emerson)
SKU: HS14F1BS SHD
Price: 913.05 USD
Availability: InStock

1KVA 190/ /440-110/220 50/60

Manufacturer: SolaHD (Emerson)

Manufacturer part number: HS14F1BS

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	1	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$913.05

Qty:

Product Details

Brand Name

SolaHD

Type

Automation Transformers - Non-Ventilated 50 VA to 45 kVA

Description

1.0 kVA, Primary A: 4.5/2.3, Secondary A: 9.1/4.5, Primary V:190/200/208/220/380/400/415/440, V Secondary:110/220, Primary V:200/208/230/400/415/460, V Secondary:115/230, V Primary:208/240/415/480, V Secondary:120/240, requency: 60HZ, 1 Phase

Application

SolaHD encapsulated transformer rated for harsh industrial environments

Standards

cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66

Features

UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure.

Specifications

Country of Origin:	US
Enclosure:	NEMA 3R, Class 1 Div 2 Group A,B,C and D
Frequency Rating:	60 Hz
Height:	10 in
Input Voltage:	600 Volts Primary VAC
KVA Rating:	1
Length:	5 in
Maximum Input Current:	1.67 A
Maximum Output Current:	4.17/8.33 A
Number of Phases:	1
Output Voltage:	120/240 Volt Secondary
Temperature Rating:	115 DEG C Temperature Rise Under Full Load
Wattage:	1,000 W
Width:	6 in

Resources

Spec Sheet Warranty
