HS14F5BS SHD

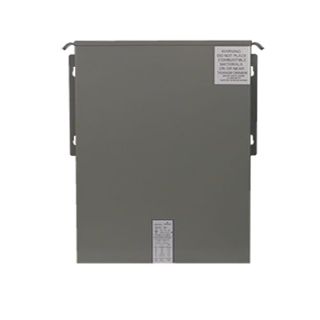

Picture of HS14F5BS SHD
Actual Product May Vary From Image

Product Details

Manufacturer:
SolaHD (Emerson)
Manufacturer part number:
HS14F5BS
CBT Inventory
1
Vendor Inventory
Loading...
CBT - CINCINNATI
1
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,261.92 / EA

Description

Type

Automation Transformers - Non-Ventilated 50 VA to 45 kVA

Description

5.0 kVA, Primary A: 22.7/11.4, Secondary A: 45.5/22.7, Primary V:190/200/208/220/380/400/415/440, V Secondary:110/220, Primary V:200/208/230/400/415/460, V Secondary:115/230, V Primary:208/240/415/480, V Secondary:120/240, requency: 60HZ, 1 Phase

Application

SolaHD encapsulated transformer rated for harsh industrial environments

Standards

cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66

Features

UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure.

Specifications

Country of Origin:US
Enclosure:NEMA 3R, Class 1 Div 2 Group A,B,C and D
Frequency Rating:50/60 HZ
Height:12 IN
Input Voltage:190/200/208/220/380/400/415/440 Volt Primary,110/220 Volt Secondary; 200/208/230/400/415/460 Volt Primary, 115/230 Volt Secondary; 208/240/415/480 Volt Primary, 120/240 Volt Secondary (60 Hz Only) VAC
KVA Rating:5
Length:10 IN
Maximum Input Current:13.6/6.8 AMP
Maximum Output Current:27.3/13.6 AMP
Number of Phases:1
Output Voltage:120/240 Volt Secondary
Temperature Rating:115 DEG C Temperature Rise Under Full Load
Wattage:3 KVA
Width:7 IN

Resources

Spec SheetWarranty
