HS19F500B SHD

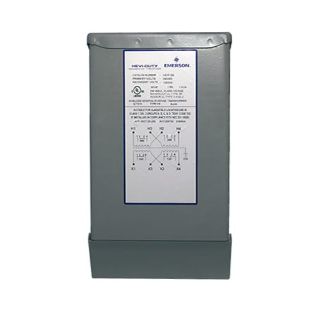

Picture of HS19F500B SHD
Actual Product May Vary From Image

Product Details

Manufacturer:
SolaHD (Emerson)
Manufacturer part number:
HS19F500B
CBT Inventory
100
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
100
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$399.73 / EA

Description

Type

Buck-Boost Transformer

Description

Buck Boost Transformers, 0.50 KVA, Maximum Secondary Amperage: 41.6 at 12V, 20.8 at 24V, 120 x 240 Volt Primary, 12/24 Volt Secondary

Application

SolaHD encapsulated transformers are rated for hazardous locations and harsh industrial environments.

Standards

cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66

Features

UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure.

Specifications

Boost Voltage:100-120 , 229-240 V
Buck Voltage:132-120 , 264-240
Connection:Conduit Knockouts for side entry to wiring compartment
Country of Origin:US
Design:Encapsulated
Enclosure:NEMA 3R, Class 1 Div 2 Group A,B,C and D
Frequency Rating:60 HZ
Height:10.00 IN
Length:5 IN
Maximum Input Current:0.833 AMP
Maximum Output Current:4.16/2.08 AMP
Number of Phases:1
Primary Voltage:120 x 240 V
Secondary Voltage:12/24 V
Temperature Rating:115 DEG C Temperature Rise Under Full Load
Wattage:0.5 KVA
Width:6 IN

Resources

Spec SheetWarranty
