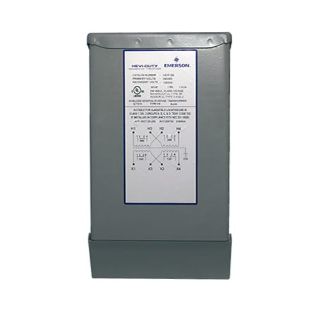

Actual Product May Vary From Image

HS20F1B SHD

Name: HS20F1B SHD
Brand: SolaHD (Emerson)
SKU: HS20F1B SHD
Price: 483.39 USD
Availability: InStock

1KVA 120X240-16/32 BB

Manufacturer: SolaHD (Emerson)

Manufacturer part number: HS20F1B

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
10	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$483.39

Qty:

Product Details

Brand Name

SolaHD

Type

Buck-Boost Transformer

Description

Buck Boost Transformers, 1.0 KVA, Maximum Secondary Amperage: 62.5 at 16V, 31.2 at 32V, 120 x 240 Volt Primary, 16/32 Volt Secondary

Application

Buck-Boost Transformers are designed to supply power to low voltage lighting circuits, control panels or other systems requiring 12, 16, 24, 32, or 48 Volts.

Standards

cULus Listed: UL 506, CSA C22.2 No.66

Features

Compact, Lightweight, Can be connected as an autotransformer. Encapsulated, Single Phase, 60HZ

Specifications

Boost Voltage:	95-120 , 240-272 V
Buck Voltage:	136-120 , 272-240 V
Country of Origin:	US
Design:	Encapsulated
Frequency Rating:	60 Hz
Height:	10 in
Length:	5 in
Maximum Input Current:	41.6@24V/83.3@12V A
Number of Phases:	1
Primary Voltage:	120X240 V
Secondary Voltage:	16/32 V
Wattage:	1,000 W
Width:	6 in

Resources

Spec Sheet Warranty
