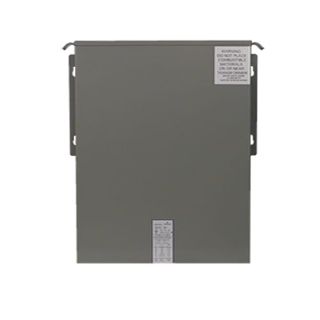

Actual Product May Vary From Image

HS5F10AS SHD

Name: HS5F10AS SHD
Brand: SolaHD (Emerson)
SKU: HS5F10AS SHD
Price: 1,751.17 USD
Availability: InStock

10KVA 240X480-120/240

Manufacturer: SolaHD (Emerson)

Manufacturer part number: HS5F10AS

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,751.17

Qty:

Product Details

Brand Name

SolaHD

Type

Automation Transformers - Non-Ventilated 50 VA to 45 kVA

Description

Transformers, Low Voltage, Single Phase, Shielded, KVA Rating: 10 KVA, Primary Voltage: 240 x 480 VAC @ 60 Hz, Secondary Voltage/Hz: 120/240 AC @ 60HZ, Taps: 115 Degree C, Winding Material: Mounting Holes in the Enclosure, Mounting: UL-3R, Enclosure Type:

Application

SolaHD encapsulated transformer rated for harsh industrial environments

Standards

cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66

Features

UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure.

Specifications

Country of Origin:	US
Enclosure:	NEMA 3R
Frequency Rating:	60 Hz
Height:	17 in
Input Voltage:	240 x 480 Volt Primary VAC
KVA Rating:	10
Length:	9 in
Maximum Input Current:	10.4/20.8 A
Maximum Output Current:	20.8/41.6 A
Number of Phases:	1
Output Voltage:	120/240 Volt Secondary
Temperature Rating:	115 DEG C Temperature Rise Under Full Load
Wattage:	5,000 W
Width:	14 in

Resources

Spec Sheet Warranty
