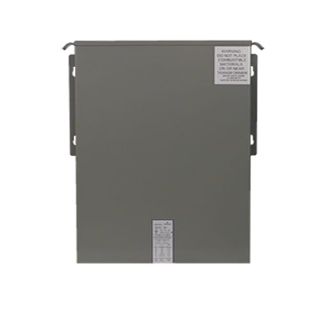

Actual Product May Vary From Image

HS5F5AS SHD

Name: HS5F5AS SHD
Brand: SolaHD (Emerson)
SKU: HS5F5AS SHD
Price: 1,115.91 USD
Availability: InStock

5KVA 240X480-120/240

Manufacturer: SolaHD (Emerson)

Manufacturer part number: HS5F5AS

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
2	2	1
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,115.91

Qty:

Product Details

Brand Name

SolaHD

Type

Automation Transformers - Non-Ventilated 50 VA to 45 kVA

Description

Transformers, Low Voltage, Single Phase, Shielded, KVA Rating: 5 KVA, Primary Voltage: 240 x 480 VAC @ 60 Hz, Secondary Voltage/Hz: 120 x 240 AC @ 60HZ, Taps: 115 Degree C, Winding Material: Mounting Holes in the Enclosure, Mounting: UL-3R, Enclosure Type

Application

SolaHD encapsulated transformer rated for harsh industrial environments

Standards

UL (CANADA AND US), UL 1561 or 506. CSA

Features

Rated for Hazardous Locations and Harsh Industrial Environments, Copper Lead Wire Terminations, UL Class 200 DEG C Insulation System

Specifications

Country of Origin:	US
Enclosure:	NEMA 3R
Frequency Rating:	60 Hz
Height:	12 in
Input Voltage:	240 x 480 Volt Primary VAC
KVA Rating:	5
Length:	7 in
Maximum Input Current:	10.4/20.8 A
Maximum Output Current:	20.8/41.6 A
Number of Phases:	1
Output Voltage:	120/240 Volt Secondary
Temperature Rating:	115 DEG C Temperature Rise Under Full Load
Wattage:	5,000 W
Width:	10 in

Resources

Spec Sheet Warranty
