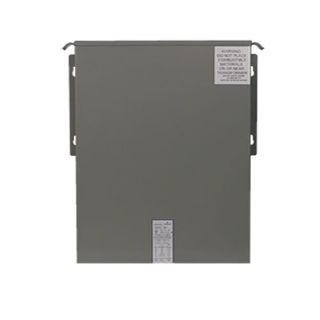

Actual Product May Vary From Image

HT1F15AS SHD

Name: HT1F15AS SHD
Brand: SolaHD (Emerson)
SKU: HT1F15AS SHD
Price: 4,876.29 USD
Availability: InStock

15KVA 480D-208Y

Manufacturer: SolaHD (Emerson)

Manufacturer part number: HT1F15AS

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$4,876.29

Qty:

Product Details

Brand Name

SolaHD

Type

Weather Shield Enclosure

Description

Transformers, Low Voltage, Three Phase, Shielded, KVA Rating: 15 KVA, Taps: 150 Degree C, Winding Material: Mounting Holes in the Enclosure, Mounting: UL-3R, Enclosure Type: 17.00 Height x 20.0 Width x 11.0 Depth Inch

Application

Transformer Protection

Standards

NEMA 3R

Features

NEMA 3R Enclosure, For 15/25 KVA 1 Phase Distribution Transformer

Specifications

Country of Origin:	US
Enclosure:	NEMA 3R
Frequency Rating:	60 Hz
Height:	17 in
Input Voltage:	480 Primary
KVA Rating:	15
Length:	11 in
Maximum Input Current:	18.1 A
Maximum Output Current:	41.7 A
Number of Phases:	3
Output Voltage:	208Y/120 Volt Secondary
Temperature Rating:	115 DEG C Temperature Rise Under Full Load
Wattage:	15k W
Width:	20 in
