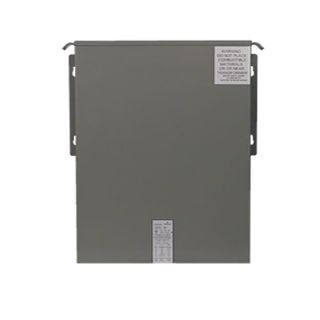

HT5F3AS SHD

Name: HT5F3AS SHD
Brand: SolaHD (Emerson)
SKU: HT5F3AS SHD
Price: 1,889.72 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

SolaHD (Emerson)

Manufacturer part number:

HT5F3AS

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$1,889.72 / EA

Description

Type

Automation Transformers - Non-Ventilated 50 VA to 45 kVA

Description

Transformers, Low Voltage, Three Phase, Shielded, KVA Rating: 3 KVA, Taps: 115 Degree C, Winding Material: Mounting Holes in the Enclosure, Mounting: UL-3R, Enclosure Type: 13.0 Height x 16.0 Width x 9.0 Depth Inch

Application

SolaHD encapsulated transformers are rated for hazardous locations and harsh industrial environments.

Standards

cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66

Features

UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure.

Specifications

Country of Origin:	US
Enclosure:	NEMA 3R
Frequency Rating:	60 HZ
Height:	13 IN
Input Voltage:	480 Volt Delta Primary VAC
KVA Rating:	3
Length:	11 IN
Maximum Input Current:	10.8 AMP
Maximum Output Current:	25 AMP
Number of Phases:	3
Output Voltage:	208Y/120 Volt Secondary
Temperature Rating:	115 DEG C Temperature Rise Under Full Load
Wattage:	9 KVA
Width:	20 IN

Resources

Spec Sheet Warranty
