HUB100DN NER

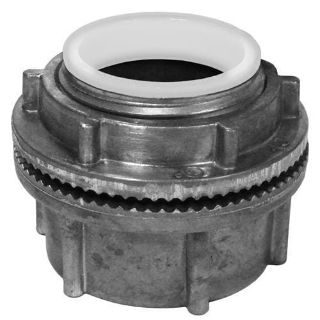

Picture of HUB100DN NER
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
HUB100DN
CBT Inventory
221
Vendor Inventory
Loading...
CBT - Cincinnati
221
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
$10.97 / EA

Description

Brand Name

Appleton®

Description

Appleton® zinc diecast hubs for use in wet or dry locations, indoors or outdoors. They are used to connect rigid metal conduit or IMC conduit to a threadless opening in an enclosure. The smooth, accurately machined NPT threads facilitate flawless installation.
Appleton® NEER™ Watertight Conduit Hub, Series: HUB, 1 in, For Use With: IMC/Rigid Conduit, Die Cast Zinc, 2 in OD x 1.81 in L

Application

Used to connect rigid or IMC conduit to a threadless opening in an enclosure

Standards

CSA Standard C22.2 No 18.3 | CSA Certified 065178 | NEMA FB-1 | UL 514B Listed | UL File No. E14814 | UL File No. E24264 | UL File No. E11853 | UL Listed for Class I, Div 2 | Class II, Div 1 and 2 | Class III | NEC 501.10(B)(4), 502.10(A)(3), 502.10(B)(4), 503.10(A)(1)

Features

  • Rugged metallic construction ensures mechanical protection
  • Insulated throat, rated up to 221 deg F, prevents wire abrasion
  • Integral O-ring provides watertight seal
  • Unique profile permits easy wrenching
  • Smooth, accurately tapped threads facilitate installation
  • Watertight and corrosion resistant

Specifications

Country of Origin:IN
Dimensions:2 in OD x 1.81 in L
Material:Die Cast Zinc
Series:HUB
Size:1 in
Suitable For Use With:IMC/Rigid Conduit
