IG5362 HWD

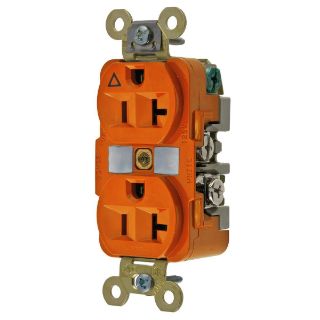

Picture of IG5362 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
IG5362
CBT Inventory
7
Vendor Inventory
Loading...
CBT - Cincinnati
7
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$47.26 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Extra Heavy Duty Duplex Isolated Ground Standard Traditional Screw Mount

Alternate Supplier #

Grainger - 5A083

Description

Wiring Device-Kellems HBL® Straight Blade Receptacle, 1-Phase Extra Heavy Duty Duplex Isolated Ground Standard Traditional Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Nylon, Orange, 3.28 x 1.33 x 1.05 in

Standards

RoHS Compliant | UL 498 File No. E2186 | CSA C22.2 No. 42 File 285 | Federal Specification WC596 | UL 94-V-0 | UL 94-V-2 Flammability Rating | NEMA WD1/WD5/WD6

Features

  • Isolated ground
  • RTP base, brass 0.37 in by-pass power contacts, 0.31 in wire clamps, 0.5 in mounting strap, #10 to 32 AWG line terminal and ground screws, stainless steel automatic self-grounding clip, steel zinc plated flat head mounting screws, steel-nickel finish ground tension clips
  • Withstands 2000 V minimum dielectric strength
  • 14 to 10 AWG copper stranded or solid conductor only
  • UL 94V-2 for Top and UL 94V-0 for base flammability
  • 2 pole, 3 wire grounding
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • Certified for current interrupting at full rated current
  • Ratings are a permanent part of the device

Specifications

Amperage Rating:20 A
Color:Orange
Country of Origin:US
Dimensions:3.28 in H x 1.33 in W x 0.8 in D
Grade:Commercial/Industrial
Horsepower:1 hp
Material:Nylon
NEMA Rating:5-20R
Number of Poles:2
Number of Wires:3
Series:Industrial
Temperature Rating:-40 to 75 deg C
Terminal Type:Back and Side Wire/Screw
Voltage Rating:125 VAC
