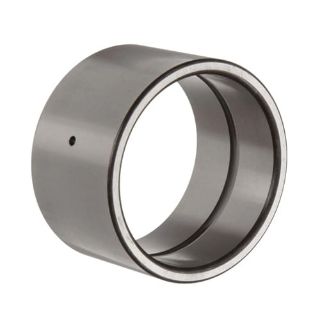

Actual Product May Vary From Image

IR-162020 KOY

Name: IR-162020 KOY
Brand: Koyo Bearings
SKU: IR-162020 KOY
Price: 18.25 USD
Availability: InStock

Koyo IR-162020 Inch Series Inner Ring, 1 in ID x 1-1/4 in OD, 1-1/4 in OAW, For Use With HJ-202820 Heavy Duty Needle Roller Bearing, Steel

Manufacturer: Koyo Bearings

Manufacturer part number: IR-162020

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	4	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$18.25

Qty:

Product Details

Brand Name

Koyo

Description

Koyo Inner Ring, Series: IR Inch Series, 1 in ID, 1-1/4 in OD, 1-1/4 in Overall Width, For Use With: HJ-202820 Heavy Duty Needle Roller Bearing, Steel, Polished Chrome

Standards

ASTM F2431

Features

Ideal choice when shaft is not practical to use as inner raceway
Provided in inch nominal dimensions for use with inch series heavy-duty needle roller bearings
Designed to meet established inch tolerances
Selected size should be wider than matching needle roller bearing
Maximum shaft fillet radius cannot exceed inner ring bore chamfer
Designed to be axially clamped against shoulder for loose transition fit on shaft
After mounting, for tight transition fit (keeping inner ring from rotating relative to shaft), inner ring OD must not exceed raceway diameter on matching bearing
After mounting, if OD of inner ring exceeds the required raceway diameter for matching bearing, ring should be ground to proper diameter while mounted to shaft

Specifications

Finish:	Polished Chrome
Inside Diameter:	1 in
Material:	Steel
Outside Diameter:	1-1/4 in
Overall Width:	1-1/4 in
Series:	IR Inch Series
Suitable For Use With:	HJ-202820 Heavy Duty Needle Roller Bearing
