ISTPHCH15MTL PAN

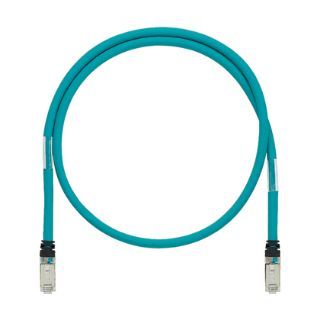

Picture of ISTPHCH15MTL PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
ISTPHCH15MTL
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$143.88 / EA

Description

Brand Name

Panduit®

Type

Class D Shielded

Description

Industrial patch cords shall be constructed of Category 5E, industrial grade, 24 AWG stranded, twisted 4-pair shielded SF/UTP cable with a flame retardant (CM) thermoplastic elastomer (TPE) jacket. Patch cord cable shall be offered in multiple colors and lengths for design flexibility. Each patch cord shall be pre-terminated to include Category 5E RJ45 shielded modular plugs on each end, with a black strain relief boot and wired according to the T568A standard. Each patch cord is designed to support high-flex applications and is rated for 600 VAC panel or on machine applications when the space is shared with high voltage power cables.
Panduit® IndustrialNet™ Patch Cord, Class D Shielded, Series: ISTPHCH, Category: Cat 5e, 24 AWG Conductor, SF/UTP Copper Conductor, Modular Plug Connector, 15 m Cord, Thermoplastic Elastomer, Teal, 158 deg F

Application

10BASE-T Ethernet, 100BASE-T Fast Ethernet, 1000BASE-T Gigabit Ethernet, Industrial Ethernet, Ethernet/IP, Control Panel Deployments Featuring Power Source Voltages, Uplinks Featuring Gigabit Data Transmission from The Control Panel to The Consolidation Point and High Flex Like Robotic

Standards

ANSI/TIA 568-C.2 Cat 5e | ANSI/TIA 968-A | ARRA Compliant | Buy American Act Compliant | CE Marking | CM Flammability Rated | IEC 60603-7 | IEEE 802.3af/802.3at | ODVA Approved | PoE Compliant | RoHS Compliant | UL 1685/1863/2463

Features

  • 100% performance tested
  • Robust construction
  • Provides identification of performance level, length and quality control number for future traceability
  • Patented tangle-free latch on modular plugs
  • Meets individual length requirements for greater system flexibility
  • Jack module black plug

Specifications

Category Type:Cat 5e
Conductor Size:24 AWG
Conductor Type:SF/UTP Copper
Connector Type:Modular Plug
Cord Length:15 m
Country of Origin:CR
Jacket Color:Teal
Jacket Material:Thermoplastic Elastomer
Series:ISTPHCH
Temperature Rating:158 deg F
