ISTPHCH4MTL PAN

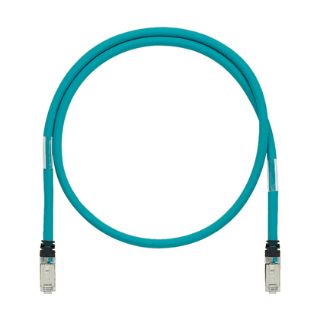

Picture of ISTPHCH4MTL PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
ISTPHCH4MTL
product.name:
ISTPHCH4MTL PAN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$62.82 / EA

Description

Brand Name

Panduit®

Type

SF/UTP CM/CMX

Description

Industrial patch cords shall be constructed of Category 5E, industrial grade, 24 AWG stranded, twisted 4-pair shielded SF/UTP cable with a flame retardant (CM) thermoplastic elastomer (TPE) jacket. Patch cord cable shall be offered in multiple colors and lengths for design flexibility. Each patch cord shall be pre-terminated to include Category 5E RJ45 shielded modular plugs on each end, with a black strain relief boot and wired according to the T568A standard. Each patch cord is designed to support high-flex applications and is rated for 600 VAC panel or on machine applications when the space is shared with high voltage power cables.
Panduit® IndustrialNet™ Patch Cord, Shielded, Series: ISTPHCH, Category: Cat 5e, 24 AWG Conductor, SF/UTP Copper Conductor, Modular Plug Connector, 4 m Cord Length, Thermoplastic Elastomer Jacket, Teal Jacket, 158 deg F

Application

10BASE-T Ethernet, 100BASE-T Fast Ethernet, 1000BASE-T Gigabit Ethernet, Industrial Ethernet, Ethernet/IP, Control Panel Deployments Featuring Power Source Voltages and Uplinks Featuring Gigabit Data Transmission from the Control Panel to the Consolidation Point

Standards

ANSI/TIA 568-C.2 | ANSI/TIA 968-A | ARRA Compliant | Buy American Act Compliant | CE Marking | IEC 60603-7 | IEEE 802.3af/802.3at | PoE Compliant | RoHS Compliant | UL 1685/1863/2463

Features

  • 100% performance tested for wire map, next and return loss
  • Centered de-embedded plug
  • Integral pair manager
  • Patented tangle-free latch
  • Smaller diameter, flexible cable design
  • Robust construction

Specifications

Category Type:Cat 5e
Conductor Size:24 AWG
Conductor Type:SF/UTP Copper
Connector Type:Modular Plug
Cord Length:4 m
Country of Origin:CR
Jacket Color:Teal
Jacket Material:Thermoplastic Elastomer
Series:ISTPHCH
Temperature Rating:-4 to 158 deg F
Voltage Rating:600 VAC
