JA 7/8 MSG

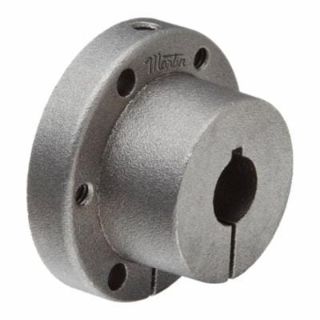

Picture of JA 7/8 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
JA 7/8
CBT Inventory
3
Vendor Inventory
Loading...
CBT - Cincinnati
1
CBT - Springboro
2
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
$19.45 / EA

Description

Brand Name

Martin

Type

Standard

Description

QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.
Martin QD Bushing, Standard, 7/8 in Bore Dia, 1-3/8 in Barrel Dia, 2-1/4 in Hub Dia, 1.665 in Bolt Circle, 2 in Flange Dia, 3/8 in Flange Thickness, 3 Bolt Holes, #10-24 x 1 in Screw, 1000 in-lb, 1.063 in Overall Length, 3/32 x 3/16 in Keyway, Steel

Features

  • Size JA bushing
  • QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
  • These bushings have a flange
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ QD bushings

Specifications

Barrel Diameter:1-3/8 in
Bolt Circle Diameter:1.665 in
Bore Diameter:7/8 in
Country of Origin:US
Flange Diameter:2 in
Flange Thickness:3/8 in
Hub Diameter:2-1/4 in
Keyway Size:3/32 x 3/16 in
Material:Steel
Number of Bolt Holes:3
Overall Length:1.063 in
Screw Size:#10-24 x 1 in
Torque Rating:1000 in-lb

Products Specifications

Bore Size
7/8"
Brand Name
Martin Sprocket & Gear
Bushing Series
JA
Measuring Units
Inch
Type
QD® Bushing
