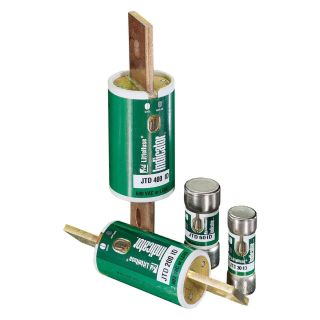

Actual Product May Vary From Image

JTD035ID LIT

Name: JTD035ID LIT
Brand: Littelfuse
SKU: JTD035ID LIT
Price: 76.94 USD
Availability: OutOfStock

Littelfuse® POWR-GARD® JTD035ID Current Limiting Time Delay Fuse, 35 A, 600 VAC/300 VDC, 200/20 kA Interrupt, J Class, Cartridge Body

Manufacturer: Littelfuse

Manufacturer part number: JTD035ID

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$76.94

Qty:

Product Details

Brand Name

Littelfuse®

Type

Current Limiting

Description

The Littelfuse® POWR-PRO® JTD_ID Indicator Class J fuse provides visual blown fuse indication and maximum protection in a compact package. The compact Class J package was designed specifically for circuits where space is at a premium. The current limiting time delay JTD_ID offers a patented true dual-element design that is ideal for use in circuits with high inrush currents. Superior performance characteristics of JTD_ID Indicator fuses reduce nuisance fuse opening and the blown fuse indication reduces downtime and increases safety.

Littelfuse® POWR-GARD® Time Delay Fuse, Current Limiting, Series: JTD, Indicating, 35 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class: J, Ferrule Terminal, Holder Mounting, Cartridge Body, Dual Element, Melamine, 1-1/16 in Dia x 2-3/8 in L Body

Application

Motor Control Centers Applications

Standards

UL 248-8 File No.E81895 | CSA File No.LR29862 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Reduced down time - A glance at the indicating window of a JTD_ID indicator fuse pinpoints open fuses immediately
Machine operators can immediately determine that there is an open fuse and request maintenance personnel to bring the proper replacement
Reduce nuisance opening - indicator fuses have superior time-delay and cycling characteristics they can be used on a variety of applications, thus decreasing fuse inventory
Reduce fuse inventory - Because JTD_ID indicator fuses have superior performance characteristics they can be used on a variety of applications, thus decreasing fuse inventory
Reduce equipment damage - indicator fuses provide superior overload and short circuit protection that can reduce equipment damage
Indicator fuses also provide IEC type II "No Damage" protection to IEC and NEMA type motor starters
Reduce accidents the JTD_ID indicator fuse improves safety by minimizing exposure to live circuits
IEC type 2 protection
200 kA rms symmetrical at 600 VAC/20 kA at 300 VDC

Specifications

Amperage Rating:	35 A
Body Size:	1-1/16 in Dia x 2-3/8 in L
Body Type:	Cartridge
Class:	J
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200/20 kA
Material:	Melamine
Mounting Type:	Holder
Series:	JTD
Terminal Type:	Ferrule
Voltage Rating:	600 VAC/300 VDC
