K4421M INM

Name: K4421M INM
Brand: INTERMATIC INC. / A-D
SKU: K4421M INM
Availability: InStock

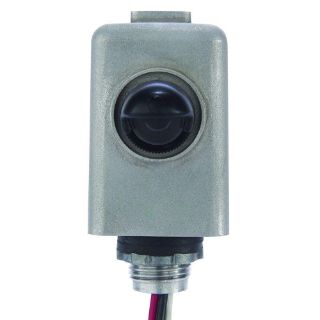

Actual Product May Vary From Image

Product Details

Manufacturer:

INTERMATIC INC. / A-D

Manufacturer part number:

K4421M

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Intermatic®

Alternate Supplier #

Grainger - 20XF01

Description

The K4100 & K4400 series photocontrols feature stem mounting, thermal-type, controls with single and multi-voltage models. thermal-type photocontrols provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching off due to car headlights and lightning. the thermal-type controls feature a cadmium sulfide photocell and a sonic welded polycarbonate case and lens to seal out moisture. the design utilizes a dual temperature compensating bimetal and composite resistor for reliable long life operation over ambient temperature extremes. these models are California title 24 compliant.

Intermatic® Stem Mounting Photocontrol, Series: K4100, 120 VAC, 15/8.3 A, 50/60 Hz, 1800 W Tungsten, 1000 VA Ballast, SPST, 30 to 90 s, 18 AWG Wire, Thermal/Cadmium Sulfide Sensor, 1 to 5 FC ON/3 to 15 FC OFF, Environmental Conditions: -40 to 158 deg F Operating Temperature, Stem Mount, Polycarbonate, Gray, 1-15/16 in L x 1-15/16 in W x 3-3/4 in H

Application

Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway, Landscape Lighting and Dusk to Dawn Lighting Control Applications

Standards

UL Recognized | CSA Certified | C/UL Recognized | Title CA 20 Listed | California Title 24 Compliant

Features

Mechanical bimetal switch with Cadmium Sulfide photocell
Delay feature prevents unwanted OFF switching
Die-cast metal housing
1/2 in-14 NPSM threaded stem
Washer gasket and locking nut included
18 AWG, 9 in wire leads

Specifications

Amperage Rating:	15/8.3 A
Ballast Load:	1000 VA
Color:	Gray
Contact Form:	SPST
Country of Origin:	MX
Dimensions:	1-15/16 in L x 1-15/16 in W x 3-3/4 in H
Environmental Conditions:	-40 to 158 deg F Operating Temperature
Frequency Rating:	50/60 Hz
Material:	Polycarbonate
Mounting Type:	Stem
Sensitivity:	1 to 5 FC ON/3 to 15 FC OFF
Sensor Type:	Thermal/Cadmium Sulfide
Series:	K4100
Timing Range:	30 to 90 s
Tungsten Rating:	1800 W
Voltage Rating:	120 VAC
Wire Size:	18 AWG
