KLDR008.TXP LIT

Name: KLDR008.TXP LIT
Brand: Littelfuse
SKU: KLDR008.TXP LIT
Price: 42.16 USD
Availability: OutOfStock

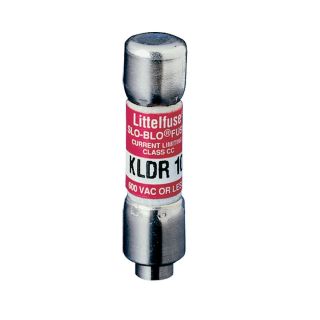

Littelfuse® POWR-GARD® KLDR008.TXP Current Limiting Time Delay Fuse, 8 A, 600 VAC/300 VDC, 20/200 kA Interrupt, CC Class, Cartridge Body

Manufacturer: Littelfuse

Manufacturer part number: KLDR008.TXP

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$42.16

Qty:

Product Details

Brand Name

Littelfuse®

Type

Current Limiting

Description

KLDR fuses are time delay fuses designed to protect control transformers, solenoids and similar inductive components with high magnetizing currents during the first half cycle. They provide excellent protection of motor branch circuits containing IEC or NEMA rated motor controllers or contactors.

Littelfuse® POWR-GARD® Time Delay Fuse, Current Limiting, Series: KLDR, Non-Indicating, Rejection, 8 A, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: CC, 12 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Melamine, 13/32 in Dia x 1-1/2 in L Body

Application

For transformer protection applications

Standards

UL 248-4 | E81895 | CSA LR29862 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Rejection feature prevents use of fuses with lower interrupting ratings or voltage ratings when used with corresponding fuse holders
Extremely current limiting reduces damage caused by heating and magnetic effects of short circuit currents
200 kA at 600 VAC, 20 kA at 300 VDC interrupt rating
Nickel plated bronze cap
12 sec minimum and 4 min maximum at 200%, 1 hr maximum at 135%, 15 min minimum at 110%

Specifications

Amperage Rating:	8 A
Body Size:	13/32 in Dia x 1-1/2 in L
Body Type:	Cartridge
Class:	CC
Country of Origin:	MX
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	20/200 kA
Material:	Melamine
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Response Time:	12 s
Series:	KLDR
Terminal Type:	Ferrule
Voltage Rating:	600 VAC/300 VDC
