KLKR008 LIT

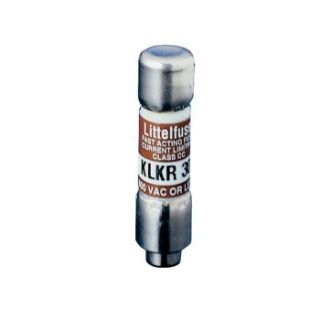

Picture of KLKR008 LIT
Actual Product May Vary From Image

Product Details

Manufacturer:
Littelfuse
Manufacturer part number:
KLKR008
product.name:
KLKR008 LIT
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$37.48 / EA

Description

Brand Name

Littelfuse®

Type

Current Limiting High Speed North American Style

Alternate Supplier #

Grainger - 486M72

Description

KLKR series Class CC fuses are fast acting fuses intended for general purpose branch circuit protection. Their compact size, fast acting overload response and their highly current limiting design make them ideal for use in OEM equipment and control panels because solid state devices such as SCRs and other electronic equipment generally require fast acting protection.
Littelfuse® POWR-GARD® Fast Acting Fuse, Current Limiting High Speed North American Style, Series: KLKR, Non-Indicating, Rejection, 8 A, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: CC, 12 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Melamine, 0.41 in Dia x 1.5 in L Body

Application

General Purpose Protection Equipment Requiring Fast Overload Protection, OEM Equipment and Control Panel Applications

Standards

UL 248-8 | CSA Certified | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Features

  • Rejection feature prevents use of fuses with lower interrupting ratings or voltage ratings when used with corresponding fuse holders
  • Extremely current limiting reduces damage caused by heating and magnetic effects of short circuit currents
  • Provide superior protection in a fraction of the space required by other fuse classes
  • 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating
  • Nickel plated bronze cap
  • 12 s minimum and 4 min maximum at 200%, 1 hr maximum at 135%, 15 min minimum at 110%

Specifications

Amperage Rating:8 A
Body Size:0.41 in Dia x 1.5 in L
Body Type:Cartridge
Class:CC
Country of Origin:MX
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:20/200 kA
Material:Melamine
Mounting Type:Holder
Rejection/Non-Rejection:Rejection
Response Time:12 s
Series:KLKR
Terminal Type:Ferrule
Voltage Rating:600 VAC/300 VDC

Products Specifications

Amperage Rating
8.0 A
Brand Name
Littelfuse
Type
Fast-Acting Fuse
