KLKR015 LIT

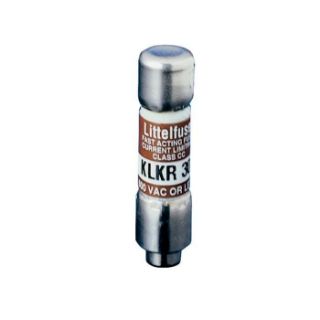

Picture of KLKR015 LIT
Actual Product May Vary From Image

Product Details

Manufacturer:
Littelfuse
Manufacturer part number:
KLKR015
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$37.48 / EA

Description

Brand Name

Littelfuse®

Type

High Speed North American Style

Alternate Supplier #

Grainger - 486M77

Description

KLKR series Class CC fuses are fast acting fuses intended for general purpose branch circuit protection. Their compact size, fast acting overload response and their highly current limiting design make them ideal for use in OEM equipment and control panels because solid state devices such as SCRs and other electronic equipment generally require fast acting protection.
Littelfuse® POWR-GARD®, KLKR015, Fast Acting Fuse, High Speed North American Style, Series: KLKR, Non-Indicating, Rejection, 15 A, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: CC, 12 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Melamine, 13/32 in Dia x 1-1/2 in L Body

Application

General Purpose Protections Equipment Requiring Fast Overload Protection Applications

Standards

UL 248-8 | CSA Certified | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • 200 kA at 600 VAC, 20 kA at 300 VDC interrupting rating
  • Nickel plated bronze cap
  • 12 s minimum and 4 min maximum at 200%, 1 hr maximum at 135%, 15 min minimum at 110%
  • Compared to other UL listed fuses, class CC fuses are the most current-limiting, rating for rating
  • For example, when 600 V three-pole, 30 A class R fuse blocks are replaced by Littelfuse class CC fuse blocks, panel-mounting space is reduced approximately 70 percentage
  • Extremely current-limiting reduces damage caused by heating and magnetic effects of short circuit currents- stops damaging short circuit faster than any mechanical protective device
  • Fast-acting fuses used for protection of equipment containing solid state devices or other electronic components requiring fast response on overloads

Specifications

Amperage Rating:15 A
Body Size:13/32 in Dia x 1-1/2 in L
Body Type:Cartridge
Class:CC
Country of Origin:MX
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:20/200 kA
Material:Melamine
Mounting Type:Holder
Rejection/Non-Rejection:Rejection
Response Time:12 s
Series:KLKR
Terminal Type:Ferrule
Voltage Rating:600 VAC/300 VDC

Products Specifications

Amperage Rating
15 A
Brand Name
Littelfuse
Type
Fast-Acting Fuse
