KQ2E07-00A SMC

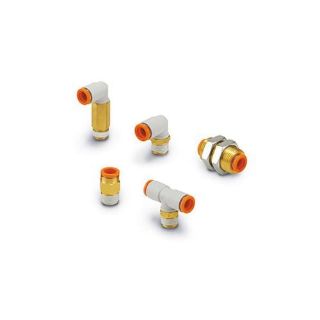

Picture of KQ2E07-00A SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
KQ2E07-00A
CBT Inventory
20
Vendor Inventory
Loading...
CBT - Cincinnati
20
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
$4.61 / EA

Description

Brand Name

SMC®

Type

Metric Size Union

Description

SMC®, KQ2E07-00A, Pneumatic Connector, Metric Size Union, Series: KQ2, Fitting/Connector: Connector, 1/4 in x 9/16-18UNF Nominal, Push-In End Style, 17.46 mm Hex, 29.8 mm Length, -100 kPa to 1 MPa Pressure, -5 to 60 deg C Air, 0 to 40 deg C Water Operating, Brass, White/Orange

Application

For use in potable water systems

Standards

RoHS Compliant

Features

  • Operating pressure range from 100kPa to 1MPa
  • Release collar allows easy removal of tubing without causing damage to the tube
  • This product is not intended for use in potable water systems

Specifications

Color:White/Orange
Country of Origin:JP
End Style:Push-In
Fitting/Connector Type:Connector
Hex Size:17.46 mm
Length:29.8 mm
Material:Brass
Nominal Size:1/4 in x 9/16-18UNF
Pressure Rating:-100 kPa to 1 MPa
Series:KQ2
Temperature Rating:-5 to 60 deg C Air, 0 to 40 deg C Water Operating
