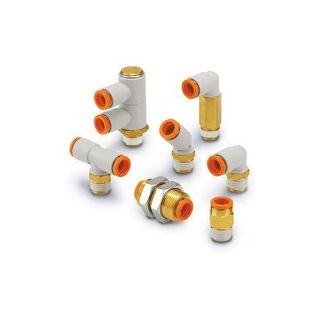

Actual Product May Vary From Image

KQ2H05-34AS SMC

Name: KQ2H05-34AS SMC
Brand: SMC
SKU: KQ2H05-34AS SMC
Price: 2.66 USD
Availability: InStock

SMC® KQ2H05-34AS KQ2 Oval Male Connector, 3/16 in x R-1/8 Nominal, Push-In End Style, Brass

Manufacturer: SMC

Manufacturer part number: KQ2H05-34AS

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
6	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2.66

Qty:

Product Details

Brand Name

SMC®

Type

Oval

Description

SMC®, KQ2H05-34AS, Male Connector, Oval, Series: KQ2, Fitting/Connector: Connector, 3/16 in x R-1/8 Nominal, Push-In End Style, 11.11 mm Hex, 17.4 mm Length, -100 kPa to 1 MPa Pressure, -5 to 60 deg C Air, 0 to 40 deg C Water Operating, Brass, White

Application

Used for a wide range of pressures from a low vacuum up to a pressure

Standards

RoHS Compliant

Features

Accepts nylon and polyurethane tubes
Stud allows rotation of the body for ease of installation in confined spaces
Release collar allows easy removal of tubing without damaging the tube
Can be used for a wide range of pressures from a low vacuum up to a pressure of 1.0MPa
This product is not intended for use in potable water systems

Specifications

Color:	White
Country of Origin:	JP
End Style:	Push-In
Fitting/Connector Type:	Connector
Hex Size:	11.11 mm
Length:	17.4 mm
Material:	Brass
Nominal Size:	3/16 in x R-1/8
Pressure Rating:	-100 kPa to 1 MPa
Series:	KQ2
Temperature Rating:	-5 to 60 deg C Air, 0 to 40 deg C Water Operating
