KQ2H06-01AS SMC

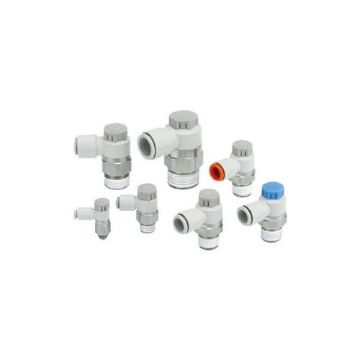

Picture of KQ2H06-01AS SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
KQ2H06-01AS
product.name:
KQ2H06-01AS SMC
CBT Inventory
2
Vendor Inventory
Loading...
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
$2.18 / EA

Description

Brand Name

SMC®

Alternate Supplier #

Grainger - 36X013

Description

KQ2 one touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1 MPa. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.
SMC® Tube Connector, Series: KQ2, Connector Fitting/Connector, 6 mm x R-1/8 Nominal, Male Threaded x Push-In End Style, 10 mm Hex, -100 kPa to 1 MPa Pressure, -5 to 60 deg C, Brass, 9.7 mm Dia x 18.4 mm L

Features

  • Accepts FEP, PFA, nylon, soft nylon and polyurethane tubes
  • Air and water fluid
  • Release collar allows easy removal of tubing without causing damage to the tube
  • This is not intended for use in potable water systems

Specifications

Dimensions:9.7 mm Dia x 18.4 mm L
End Style:Male Threaded x Push-In
Fitting/Connector Type:Connector
Hex Size:10 mm
Material:Brass
Nominal Size:6 mm x R-1/8
Pressure Rating:-100 kPa to 1 MPa
Series:KQ2
Temperature Rating:-5 to 60 deg C
