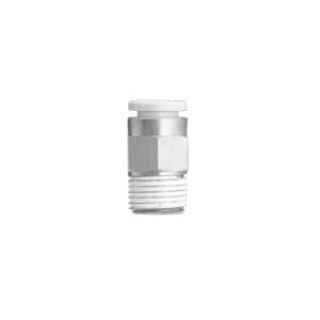

Actual Product May Vary From Image

KQ2H06-02AS SMC

Name: KQ2H06-02AS SMC
Brand: SMC
SKU: KQ2H06-02AS SMC
Price: 2.18 USD
Availability: InStock

SMC® KQ2H06-02AS KQ2 Tube Connector, 6 mm x R-1/4 Nominal, Male Threaded x Push-In, Brass

Manufacturer: SMC

Manufacturer part number: KQ2H06-02AS

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
25	0	10
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2.18

Qty:

Product Details

Brand Name

SMC®

Alternate Supplier #

Grainger - 36X014

Description

KQ2 one touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1 MPa. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.

SMC® Tube Connector, Series: KQ2, Connector Fitting/Connector, 6 mm x R-1/4 Nominal, Male Threaded x Push-In End Style, 14 mm Hex, -100 kPa to 1 MPa Pressure, -5 to 60 deg C, Brass, 9.7 mm Dia x 16.7 mm L

Features

Accepts FEP, PFA, nylon, soft nylon and polyurethane tubes
Air and water fluid
Release collar allows easy removal of tubing without causing damage to the tube
This is not intended for use in potable water systems

Specifications

Dimensions:	9.7 mm Dia x 16.7 mm L
End Style:	Male Threaded x Push-In
Fitting/Connector Type:	Connector
Hex Size:	14 mm
Material:	Brass
Nominal Size:	6 mm x R-1/4
Pressure Rating:	-100 kPa to 1 MPa
Series:	KQ2
Temperature Rating:	-5 to 60 deg C
