KQ2H07-01NS SMC

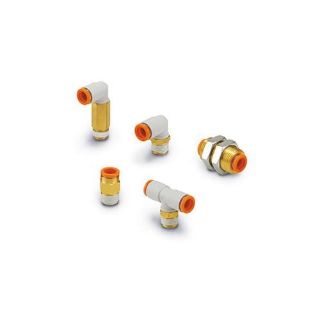

Picture of KQ2H07-01NS SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
KQ2H07-01NS
CBT Inventory
7
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
7
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
$3.21 / EA

Description

Brand Name

SMC®

Type

Inch Size with Sealant

Description

SMC®, KQ2H07-01NS, Male Connector, Inch Size with Sealant, Series: KQ2, Fitting/Connector: Connector, 1/4 in x R-1/8 Nominal, Push-In End Style, 12 mm Hex, 18.2 mm Length, -100 kPa to 1 MPa Pressure, -5 to 60 deg C Air, 0 to 40 deg C Water Operating, Brass, Electroless Nickel Plated, White

Application

For use in potable water systems

Standards

RoHS Compliant

Features

  • Operating pressure range from 100kPa to 1MPa
  • Release collar allows easy removal of tubing without causing damage to the tube
  • This product is not intended for use in potable water systems

Specifications

Color:White
Country of Origin:JP
End Style:Push-In
Finish:Electroless Nickel Plated
Fitting/Connector Type:Connector
Hex Size:12 mm
Length:18.2 mm
Material:Brass
Nominal Size:1/4 in x R-1/8
Pressure Rating:-100 kPa to 1 MPa
Series:KQ2
Temperature Rating:-5 to 60 deg C Air, 0 to 40 deg C Water Operating
