KQ2H07-36NS SMC

Name: KQ2H07-36NS SMC
Brand: SMC
SKU: KQ2H07-36NS SMC
Price: 3.43 USD
Availability: InStock

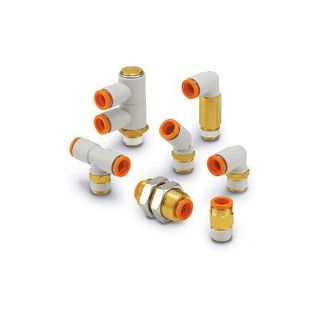

Actual Product May Vary From Image

Product Details

Manufacturer:

SMC

Manufacturer part number:

KQ2H07-36NS

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$3.43 / EA

Description

Brand Name

SMC®

Type

Metric with Sealant

Description

SMC®, KQ2H07-36NS, One-Touch Fittings, Metric with Sealant, Series: KQ2, Fitting/Connector: Connector, 1/4 x 3/8 in Nominal, Push-In x MNPT End Style, 17.46 mm Hex, 18.1 mm Length, -100 kPa to 1 MPa Pressure, -5 to 60 deg C Air, 0 to 40 deg C Water Operating, Brass, Electroless Nickel Plated, White/Light Gray, 20.9 mm L Dimensions

Application

Used for a wide range of pressures from a low vacuum up to a pressure

Standards

RoHS Compliant

Features

Accepts nylon and polyurethane tubes
Stud allows rotation of the body for ease of installation in confined spaces
Release collar allows easy removal of tubing without damaging the tube
Can be used for a wide range of pressures from a low vacuum up to a pressure of 1.0MPa
This product is not intended for use in potable water systems

Specifications

Color:	White/Light Gray
Country of Origin:	JP
Dimensions:	20.9 mm L
End Style:	Push-In x MNPT
Finish:	Electroless Nickel Plated
Fitting/Connector Type:	Connector
Hex Size:	17.46 mm
Length:	18.1 mm
Material:	Brass
Nominal Size:	1/4 x 3/8 in
Pressure Rating:	-100 kPa to 1 MPa
Series:	KQ2
Temperature Rating:	-5 to 60 deg C Air, 0 to 40 deg C Water Operating
