Actual Product May Vary From Image

KQ2H08-U03A SMC

Name: KQ2H08-U03A SMC
Brand: SMC
SKU: KQ2H08-U03A SMC
Price: 3.49 USD
Availability: InStock

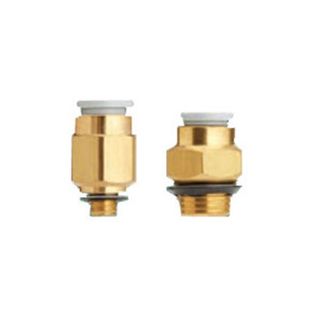

SMC® KQ2H08-U03A KQ2 Metric With Gasket One-Touch Fittings, 8 mm x Uni-3/8 Nominal, Push-In End Style, Brass

Manufacturer: SMC

Manufacturer part number: KQ2H08-U03A

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
28	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$3.49

Qty:

Product Details

Brand Name

SMC®

Type

Metric With Gasket

Description

SMC®, KQ2H08-U03A, One-Touch Fittings, Metric With Gasket, Series: KQ2, Fitting/Connector: Connector, 8 mm x Uni-3/8 Nominal, Push-In End Style, 17 mm Hex, 14.9 mm Length, -100 kPa to 1 MPa Pressure, -5 to 60 deg C Air, 0 to 40 deg C Water Operating, Brass, White/Light Gray

Specifications

Color:	White/Light Gray
End Style:	Push-In
Fitting/Connector Type:	Connector
Hex Size:	17 mm
Length:	14.9 mm
Material:	Brass
Nominal Size:	8 mm x Uni-3/8
Pressure Rating:	-100 kPa to 1 MPa
Series:	KQ2
Temperature Rating:	-5 to 60 deg C Air, 0 to 40 deg C Water Operating
