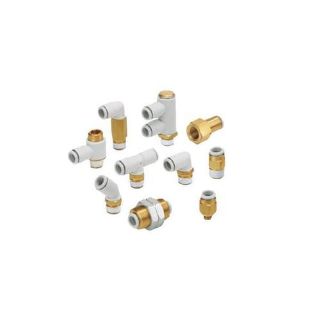

Actual Product May Vary From Image

KQ2H16-04AS SMC

Name: KQ2H16-04AS SMC
Brand: SMC
SKU: KQ2H16-04AS SMC
Price: 7.97 USD
Availability: InStock

SMC® KQ2H16-04AS KQ2 Pneumatic Connector, 16 mm x R-1/2 Nominal, Push-In End Style, Brass

Manufacturer: SMC

Manufacturer part number: KQ2H16-04AS

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$7.97

Qty:

Product Details

Brand Name

SMC®

Description

SMC®, KQ2H16-04AS, Pneumatic Connector, Series: KQ2, Fitting/Connector: Connector, 16 mm x R-1/2 Nominal, Push-In End Style, 24 mm Hex, 32.1 mm Length, -100 kPa to 1 MPa Pressure, -5 to 60 deg C Air, 0 to 40 deg C Water Operating, Brass, White/Light Gray

Application

For use in potable water systems

Standards

RoHS Compliant

Features

Accepts FEP, PFA, nylon, soft nylon, and polyurethane tubes
Operating pressure range, -100kPa to 1MPa
Release collar allows easy removal of tubing without causing damage to the tube
This product is not intended for use in potable water systems

Specifications

Color:	White/Light Gray
Country of Origin:	JP
End Style:	Push-In
Fitting/Connector Type:	Connector
Hex Size:	24 mm
Length:	32.1 mm
Material:	Brass
Nominal Size:	16 mm x R-1/2
Pressure Rating:	-100 kPa to 1 MPa
Series:	KQ2
Temperature Rating:	-5 to 60 deg C Air, 0 to 40 deg C Water Operating
