KQ2H16-U04A SMC

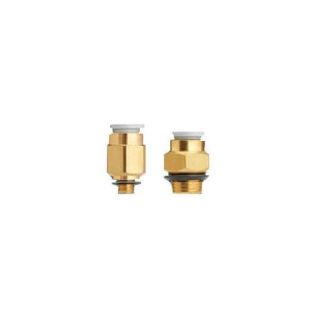

Picture of KQ2H16-U04A SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
KQ2H16-U04A
CBT Inventory
1
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
1
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
$9.07 / EA

Description

Brand Name

SMC®

Description

SMC®, KQ2H16-U04A, Pneumatic Connector, Series: KQ2, Fitting/Connector: Connector, 16 mm x Uni-1/2 Nominal, Push-In x MNPT End Style, 24 mm Hex, 26.8 mm Length, -100 kPa to 1 MPa Pressure, -5 to 60 deg C Air, 0 to 40 deg C Water Operating, Brass, White/Light Gray

Application

For use in potable water systems

Standards

RoHS Compliant

Features

  • Accepts FEP, PFA, nylon, soft nylon, and polyurethane tubes
  • Operating pressure range, -100kPa to 1MPa
  • Release collar allows easy removal of tubing without causing damage to the tube
  • This product is not intended for use in potable water systems

Specifications

Color:White/Light Gray
Country of Origin:JP
End Style:Push-In x MNPT
Fitting/Connector Type:Connector
Hex Size:24 mm
Length:26.8 mm
Material:Brass
Nominal Size:16 mm x Uni-1/2
Pressure Rating:-100 kPa to 1 MPa
Series:KQ2
Temperature Rating:-5 to 60 deg C Air, 0 to 40 deg C Water Operating
