Actual Product May Vary From Image

KQ2L06-03AS SMC

Name: KQ2L06-03AS SMC
Brand: SMC
SKU: KQ2L06-03AS SMC
Price: 3.91 USD
Availability: InStock

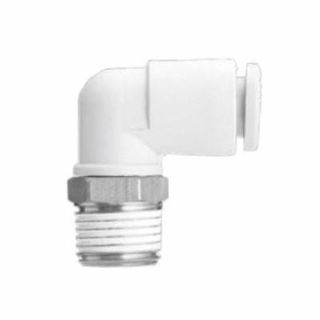

SMC® KQ2L06-03AS 90 deg Union Male Elbow, 3/8 in, Male BSPT, PBT

Manufacturer: SMC

Manufacturer part number: KQ2L06-03AS

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
54	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$3.91

Qty:

Product Details

Brand Name

SMC®

Type

Union

Description

KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. the use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1MPa. the KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.

SMC® Male Elbow, Union, Series: KQ2, Fitting/Connector Type: 90 deg Elbow, 3/8 in Nominal, Male BSPT, 17 mm Hex, 145 psi, 23 to 140 deg F, PBT, Gray/White

Application

For 6 mm OD tubing

Standards

RoHS Compliant

Features

Accepts FEP, PFA, nylon, soft nylon and polyurethane tubes
Operating fluid - air and water
Release collar allows easy removal of tubing without causing damage to the tube
Not intended for use in potable water systems
Brass surface threaded
Connection thread with sealant
4.5 in minimum port size

Specifications

Color:	Gray/White
Country of Origin:	SG
End Style:	Male BSPT
Fitting/Connector Type:	90 deg Elbow
Hex Size:	17 mm
Material:	PBT
Nominal Size:	3/8 in
Pressure Rating:	145 psi
Series:	KQ2
Temperature Rating:	23 to 140 deg F
