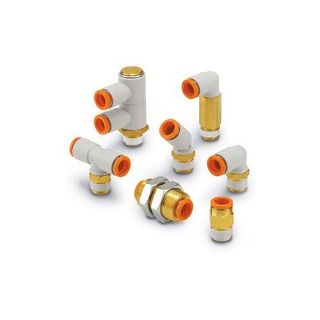

Actual Product May Vary From Image

KQ2T13-36AS SMC

Name: KQ2T13-36AS SMC
Brand: SMC
SKU: KQ2T13-36AS SMC
Price: 7.99 USD
Availability: InStock

SMC® KQ2T13-36AS KQ2 Pneumatic Tee, 1/2 in x 3/8 in Nominal, MNPT x Push-In Tube End Style, Brass

Manufacturer: SMC

Manufacturer part number: KQ2T13-36AS

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	3	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$7.99

Qty:

Product Details

Brand Name

SMC®

Description

SMC®, KQ2T13-36AS, Pneumatic Tee, Series: KQ2, Fitting/Connector: Tee, 1/2 in x 3/8 in Nominal, MNPT x Push-In Tube End Style, 17.46 mm Hex, 56 mm Length, -100 KPa to 1 MPa Pressure, -5 to 60 deg C, Brass, White/Orange

Application

Used for a wide range of pressures from a low vacuum up to a pressure

Standards

RoHS Compliant

Features

Accepts nylon and polyurethane tubes
Stud allows rotation of the body for ease of installation in confined spaces
Release collar allows easy removal of tubing without damaging the tube
Can be used for a wide range of pressures from a low vacuum up to a pressure of 1.0MPa
This product is not intended for use in potable water systems

Specifications

Color:	White/Orange
Country of Origin:	JP
End Style:	MNPT x Push-In Tube
Fitting/Connector Type:	Tee
Hex Size:	17.46 mm
Length:	56 mm
Material:	Brass
Nominal Size:	1/2 in x 3/8 in
Pressure Rating:	-100 KPa to 1 MPa
Series:	KQ2
Temperature Rating:	-5 to 60 deg C
