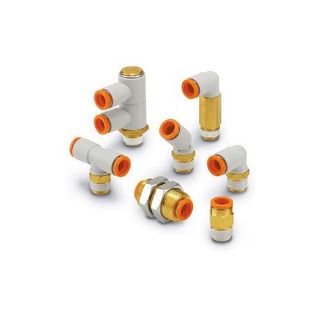

Actual Product May Vary From Image

KQ2V03-32A SMC

Name: KQ2V03-32A SMC
Brand: SMC
SKU: KQ2V03-32A SMC
Price: 6.45 USD
Availability: InStock

SMC® KQ2V03-32A KQ2 Universal One Touch Fitting, 5/32 in x 10-32 Nominal, Female Push-In x Male UNF Threaded End Style, Brass

Manufacturer: SMC

Manufacturer part number: KQ2V03-32A

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	5
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$6.45

Qty:

Product Details

Brand Name

SMC®

Type

Universal

Description

SMC®, KQ2V03-32A, One Touch Fitting, Universal, Series: KQ2, Fitting/Connector: 90 deg Elbow, 5/32 in x 10-32 Nominal, Female Push-In x Male UNF Threaded End Style, 8 mm Hex, 20.5 mm Length, -100 kPa to 1 MPa Pressure, -5 to 60 deg C, Brass, Gray/White

Application

Used for a wide range of pressures from a low vacuum up to a pressure

Standards

RoHS Compliant

Features

Accepts nylon and polyurethane tubes
Stud allows rotation of the body for ease of installation in confined spaces
Release collar allows easy removal of tubing without damaging the tube
Can be used for a wide range of pressures from a low vacuum up to a pressure of 1.0MPa
This product is not intended for use in potable water systems

Specifications

Color:	Gray/White
Country of Origin:	JP
End Style:	Female Push-In x Male UNF Threaded
Fitting/Connector Type:	90 deg Elbow
Hex Size:	8 mm
Length:	20.5 mm
Material:	Brass
Nominal Size:	5/32 in x 10-32
Pressure Rating:	-100 kPa to 1 MPa
Series:	KQ2
Temperature Rating:	-5 to 60 deg C
