Home / KTK-R-5 BSF

KTK-R-5 BSF

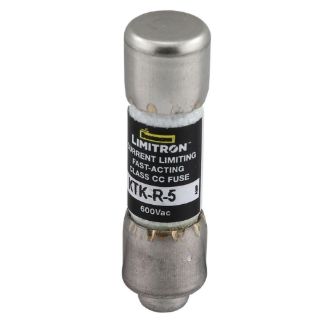

Picture of KTK-R-5 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
KTK-R-5
Product Name:
KTK-R-5 BSF
CBT Inventory
13
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
13
CBT - LEXINGTON
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
$58.72 / EA

Description

Brand Name

Bussmann

Type

Fast Acting

Alternate Supplier #

Grainger - 4XC24
Fastenal - 0761184

Description

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection
Bussmann Limitron™ Fuse, Fast Acting Current Limiting Low Voltage, Series: KTK-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 5 A, 600 V, 200 kA Interrupt, Class: CC, Ferrule Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

Application

Branch Circuits, Specialized Circuits, Industrial Control and Street Lighting Applications, Safety and Security Systems

Standards

CE Certified | CSA 1422-02 | CSA C22.2 No. 248.4 | CSA File No. 53787 | File No. E4273 | RoHS Compliant | UL 248-4 | UL Guide JDDZ

Features

  • Current limitation at class CC levels provides maximum component short circuit current rating protection
  • 200 kA interrupt rating provides high ratings for control circuit locations
  • Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
  • Nickel plated bronze end caps

Specifications

Amperage Rating:5 A
Body Size:13/32 in Dia x 1-1/2 in L
Body Type:Cartridge
Class:CC
Element:Single
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Material:Melamine
Mounting Type:Holder
Rejection/Non-Rejection:Rejection
Series:KTK-R
Terminal Type:Ferrule
Voltage Rating:600 V
