L090 HUB X 1 KW1/4 BLT

Name: L090 HUB X 1 KW1/4 BLT
Brand: Bearings Limited
SKU: L090 HUB X 1 KW1/4 BLT
Price: 9.85 USD
Availability: OutOfStock

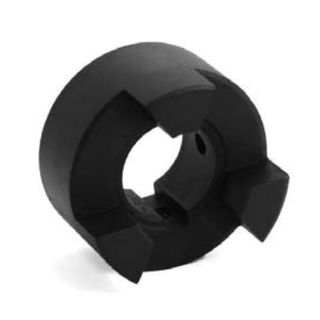

TRITAN® L090 HUB X 1 KW1/4 L Series Finished Bore Straight Type 1 Jaw Coupling Hub With Keyway, 090 Coupling, 1 in Dia Bore, 2.11 in Dia Hub, Cast Iron

Manufacturer: Bearings Limited

Manufacturer part number: L090 HUB X 1 KW1/4

Availability: 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$9.85

Qty:

Product Details

Brand Name

TRITAN®

Type

Finished Bore Straight Type 1

Description

TRITAN® Jaw Couplings provide standard shaft to shaft connection for general duty applications. Two hubs are used in pair with elastomer element (spider), each sold separately. The element eliminates metal to metal contact and acts as a shock absorber. The design is "fail-safe" in that it will still perform if elastomer element fails.

TRITAN® Jaw Coupling Hub, Finished Bore Straight Type 1, Series: L Series, 090 Coupling, 1 in Bore, 2.11 in Diameter Hub, 2-1/8 in Hub Length, 1/4 x 1/8 in Keyway, 5/16-18 x 3/8 in Screw, Cast Iron, Black Oxide

Application

Pump Manufacturers, Hydraulic Pump and Power Units, Light Duty Sawmill Equipment, Conveying Equipment, Lifting Equipment, Textile Equipment, Packaging Equipment and Paper Processing

Includes

(2) Hubs, (1) NBR Rubber Spider and (2) Setscrews

Specifications

Bore Diameter:	1 in
Coupling Size:	090
Finish:	Black Oxide
Hub Diameter:	2.11 in
Hub Length:	2-1/8 in
Keyway Size:	1/4 x 1/8 in
Material:	Cast Iron
Screw Size:	5/16-18 x 3/8 in
Series:	L Series
