L099/100N AD

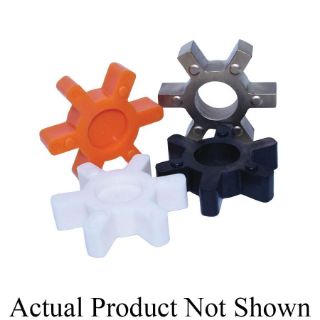

Picture of L099/100N AD
Actual Product May Vary From Image

Product Details

Manufacturer:
IDC-USA
Manufacturer part number:
IDC L099/100N
CBT Inventory
3
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
2
CBT - LEXINGTON
0
CBT - LOUISVILLE
1
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
$9.96 / EA

Description

Brand Name

IDC Select®

Description

IDC Select® Coupling Insert, L099/100 Coupling, 0.6496/0.6586 in Length, 2.5354/2.5307 in OD, 318/417 in-lb Torque, 7000 rpm Maximum, For Use With: L099/100 L-Type Jaw Couplings, -40 to 212 deg F, NBR, Black

Features

  • Industry standard
  • Good chemical resistance
  • 1 deg angular misalignment
  • 0.015 in parallel misalignment
  • High dampening capacity
  • 6 legs

Specifications

Coupling Size:L099/100
Finish:Black
Length:0.6496/0.6586 in
Material:NBR
Maximum Speed:7000 rpm
Outside Diameter:2.5354/2.5307 in
Suitable For Use With:L099/100 L-Type Jaw Couplings
Temperature Rating:-40 to 212 deg F
Torque Rating:318/417 in-lb
