LAM2A2/0-14-6Y PAN

Name: LAM2A2/0-14-6Y PAN
Brand: Panduit
SKU: LAM2A2/0-14-6Y PAN
Price: 5.85 USD
Availability: OutOfStock

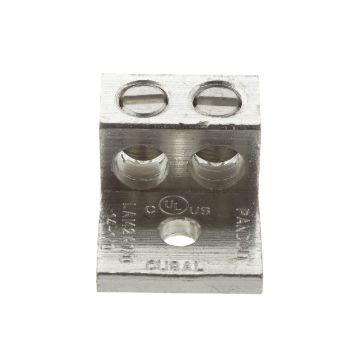

Panduit® LAM2A2/0-14-6Y Type LAM2A Dual Barrel Mechanical Connector Lug, 14 to 2/0 AWG Conductor Stranded Aluminum/Copper Conductor, 1/4 in Stud, 1 Bolt Holes

Manufacturer: Panduit

Manufacturer part number: LAM2A2/0-14-6Y

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$5.85

Qty:

Product Details

Brand Name

Panduit®

Type

2-Barrel

Description

Panduit® offers a broad variety of mechanical lugs, splices and split bolt connectors suitable for a wide range of electrical terminations using code conductor. Designed to be reusable and installed without special tooling, Pan-Lug™ mechanical connectors provide quality performance, ease of installation and lowest installed cost. Pan-Lug™ mechanical connectors include split bolt connectors, copper mechanical lugs, aluminum mechanical lugs and aluminum multi-tap connectors with clear PVC insulation. Products are available in stamped and formed, extruded and cast varieties of multiple barrel and tongue configurations to provide solutions for diverse power and grounding needs. Panduit offers a wide assortment of Pan-Lug™ power and grounding connectors to meet customer needs and today's application requirements.

Panduit®, LAM2A2/0-14-6Y, Mechanical Connector Lug, Type LAM2A Dual Barrel, Stranded Aluminum/Copper Conductor, 14 to 2/0 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 0.85 in L x 1.2 in W x 0.19 in THK Tongue, 600 VAC, Specifications: 0.62 in L Wire Strip, 90 deg C, Tin Plated, 1.47 in L x 0.78 in H Dimensions

Application

For stranded aluminum or copper code conductors

Standards

ARRA Compliant | Buy American Act Compliant | CSA Certified | RoHS Compliant | UL Listed | PROP65: This product can expose you to chemicals including - nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Features

Dual barrel provides termination of 2 conductors
Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
Tin plated to inhibit corrosion
Wide wire range taking capability minimizes inventory requirements
Inspection window to visually assure full conductor insertion
Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector

Specifications

Conductor Size:	14 to 2/0 AWG
Conductor Type:	Aluminum/Copper/Stranded
Country of Origin:	IN
Dimensions:	1.47 in L x 0.78 in H
Finish:	Tin Plated
Material:	Aluminum
Number of Bolt Holes:	1
Series:	LAM2A
Specifications:	0.62 in L Wire Strip
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.85 in L x 1.2 in W x 0.19 in THK
Tongue Type:	Straight
Voltage Rating:	600 VAC
