Actual Product May Vary From Image

LAMA350-38-QY PAN

Name: LAMA350-38-QY PAN
Brand: Panduit
SKU: LAMA350-38-QY PAN
Price: 7.93 USD
Availability: InStock

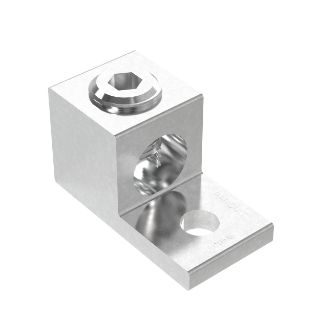

Panduit® LAMA350-38-QY 1- Barrel Mechanical Lug, 6 AWG to 350 kcmil Aluminum/Stranded Copper Conductor, 3/8 in Stud, 1 Bolt Hole, Aluminum

Manufacturer: Panduit

Manufacturer part number: LAMA350-38-QY

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	2
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$7.93

Qty:

Product Details

Brand Name

Panduit®

Type

1- Barrel

Description

Panduit® Mechanical Lug, 1- Barrel, Series: LAMA, Aluminum/Stranded Copper Conductor, 6 AWG to 350 kcmil Conductor, 3/8 in Stud, 1 Bolt Hole, 1.12 in L x 1.13 in W x 0.25 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 5/16 in Hex, 1.13 in L Wire Strip, 90 deg C, Aluminum, TiN Coated, 2.26 in L x 1.13 in W x 1.25 in H Dimensions

Application

Power and Grounding Applications

Standards

Features

Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
Tin plated to inhibit corrosion
Compact design saves space
Wide wire range taking capability minimizes inventory requirements
Inspection window to visually assure full conductor insertion
Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector

Specifications

Conductor Size:	6 AWG to 350 kcmil
Conductor Type:	Aluminum/Stranded Copper
Country of Origin:	IN
Dimensions:	2-1/4 in L x 1-1/4 in H
Finish:	TiN Coated
Material:	Aluminum
Number of Bolt Holes:	1
Series:	LAMA
Specifications:	1.13 in L Wire Strip
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1.12 in L x 1.13 in W x 0.25 in THK
Tongue Type:	Straight
Voltage Rating:	600 VAC

Resources

Video
