LB47 CRH

Product Details

Manufacturer part number:
LB47
CBT Inventory
4
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
4
CBT - LEXINGTON
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
$62.67 / EA

Description

Brand Name

Crouse-Hinds

Type

Type LB

Description

One hundred years after the introduction of the Condulet, Eaton remains the leader in conduit outlet bodies with its Crouse-Hinds series. The line has grown to six families manufactured in a variety of materials, and Form 7 bodies are offered in 11 different shapes to provide the most flexible offering on the market. Form 7 Condulet outlet bodies approach conduit in size for neat, compact installations. Many shapes and sizes are available for rigid threaded conduit. Our Form 7 family features an exclusive Snaptight and wedge nut cover attachment for an unobstructed cover opening, and an integrally gasketed cover saves customers inventory and labor costs. Form 7 is available as components or pre-packaged in various configurations as a SnapPack assembly.

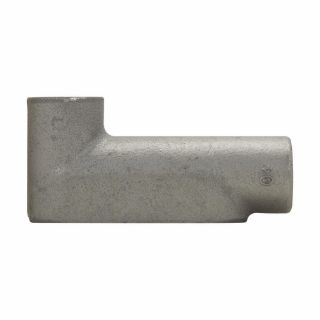

Crouse-Hinds Condulet® Conduit Body, Type LB, 1-1/4 in Hub, 2 Hubs, 7 Form, Threaded x Set Screw Connection, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized, 6-1/2 in L x 2-3/16 in W x 3-5/16 in H Dimensions

Application

For rigid conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors

Standards

cUL Listed | UL 514B | CSA C22.2 No. 18 | Federal Specification W-C-586D

Features

  • Form 7 Condulet® outlet bodies approach conduit in size for neat, compact installations
  • Conduit hubs have tapered threads and feature integral bushings for protection of wire insulation
  • Form 7 has exclusive snaptight and wedgenut cover attachment to provide clear, unobstructed cover opening

Specifications

Capacity:18.5 cu-in
Connection Type:Threaded x Set Screw
Country of Origin:US
Dimensions:6-1/2 in L x 2-3/16 in W x 3-5/16 in H
Finish:Aluminum Acrylic Painted/Electro-Galvanized
Form:7
Hub Size:1-1/4 in
Material:Feraloy® Iron Alloy
Number of Hubs:2
