LB50M APN

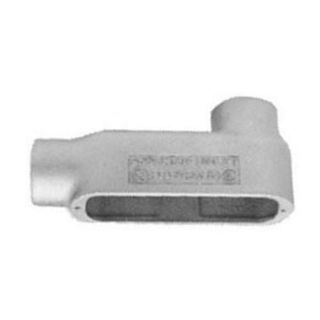

Picture of LB50M APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
LB50-M
CBT Inventory
42
Vendor Inventory
Loading...
CBT - Cincinnati
28
CBT - Springboro
14
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
$14.41 / EA

Description

Brand Name

Appleton®

Type

Type LB

Alternate Supplier #

Grainger - 10V966

Description

Appleton® Form 35™ Malleable Iron Conduit Outlet Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintece.
Appleton® UNILETS™ Conduit Outlet Body, Type LB, 1/2 in Hub, 2 Hubs, 4.5 cu-in, 35, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Malleable Iron, Triple Coated, 4.63 in L x 2 in W x 2.13 in H

Application

For Rigid Steel/Aluminum and IMC Conduit

Standards

ARRA Compliant | RoHS Compliant | UL 514B File No. E2527 | C22.2 No. 18.3/065183 Certified

Features

  • Smooth, rounded integral bushing in hubs protects conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Form 35™ malleable iron UNILETS™ high tensile strength and ductility
  • High corrosion resistance, high impact and shock resistance
  • Sizes with flat back design ideal where fitting is mounted flat against surface

Specifications

Capacity:4.5 cu-in
Connection Type:Tapered FNPT
Country of Origin:MX
Dimensions:4.63 in L x 2 in W x 2.13 in H
Enclosure:NEMA FB-1
Finish:Triple Coated
Form:35
Hub Size:1/2 in
Material:Malleable Iron
Mounting Type:Surface
Number of Hubs:2

Products Specifications

Brand Name
Appleton
Connection
Tapered Female Threaded
Form
35
Material
Malleable Iron
Size
1/2 in
Type
Conduit Outlet Body
