Actual Product May Vary From Image

LB75DCG NER

Name: LB75DCG NER
Brand: Appleton
SKU: LB75DCG NER
Price: 20.28 USD
Availability: InStock

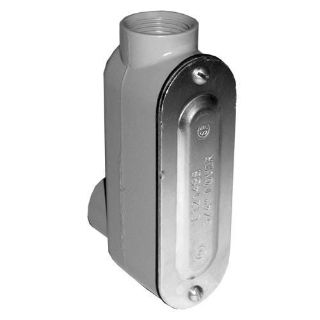

Appleton® NEER™ LB75DCG Type LB Conduit Outlet Body With Cover and Gasket, 3/4 in Hub, 7.3 cu-in Capacity, Die Cast Copper Free Aluminum, Epoxy Powder Coated

Manufacturer: Appleton

Manufacturer part number: LB75DCG

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
42	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$20.28

Qty:

Product Details

Brand Name

Appleton®

Type

Type LB

Description

NEER™ aluminum threaded conduit bodies, covers and gaskets are used to connect and change direction of conduit runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

Appleton® NEER™ Conduit Outlet Body, Type LB, 3/4 in Hub, 2 Hubs, 7.3 cu-in Capacity, NEMA FB-1 Enclosure, Thread Connection, Die Cast Copper Free Aluminum, Epoxy Powder Coated, 5.17 in L x 1.53 in W x 2.8 in H Dimensions

Application

Rigid/IMC Conduit Applications

Standards

UL 514A File No. E53330 | CSA C22.2 No. 18.3/208044

Features

Lightweight aluminum facilitates shipping, handling and installing

Specifications

Capacity:	7.3 cu-in
Connection Type:	Thread
Country of Origin:	IN
Dimensions:	5.17 in L x 1.53 in W x 2.8 in H
Enclosure:	NEMA FB-1
Finish:	Epoxy Powder Coated
Hub Size:	3/4 in
Material:	Die Cast Copper Free Aluminum
Number of Hubs:	2
