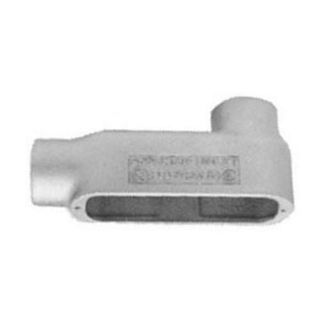

LB75M APN

Product Details

Manufacturer:
Manufacturer part number:
LB75-M
Product Name:
LB75M APN
CBT Inventory
289
Vendor Inventory
Loading...
CBT - Cincinnati
264
CBT - Springboro
25
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
$17.31 / EA

Description

Brand Name

Appleton®

Type

Type LB

Alternate Supplier #

Grainger - 10V976

Description

Appleton® Form 35™ Malleable Iron Conduit Outlet Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintece.
Appleton® UNILETS™ Conduit Outlet Body, Type LB, 2 Hubs, 7 cu-in, 35, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Malleable Iron, Triple Coated, 5.38 in L x 2.19 in W x 2.31 in H

Application

For Rigid Steel/Aluminum and IMC Conduit

Standards

ARRA Compliant | UL 514B File No. E2527 | C22.2 No. 18.3/065183 Certified

Features

  • Smooth, rounded integral bushing in hubs protects conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Form 35™ malleable iron UNILETS™ high tensile strength and ductility
  • High corrosion resistance, high impact and shock resistance
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • Exclusive built-in easy-pulling rollers

Specifications

Capacity:7 cu-in
Connection Type:Tapered FNPT
Country of Origin:MX
Dimensions:5.38 in L x 2.19 in W x 2.31 in H
Enclosure:NEMA FB-1
Finish:Triple Coated
Form:35
Material:Malleable Iron
Mounting Type:Surface
Number of Hubs:2

Products Specifications

Brand Name
Appleton
Connection
Tapered Female Threaded
Form
35
Material
Malleable Iron
Size
3/4 in
Type
Conduit Outlet Body

Customers who bought this item also bought

5344 TB

MFG#:5344
Info:1 IN INSUL 45 DEGREE LIQ TIGHT CON
$ -.--

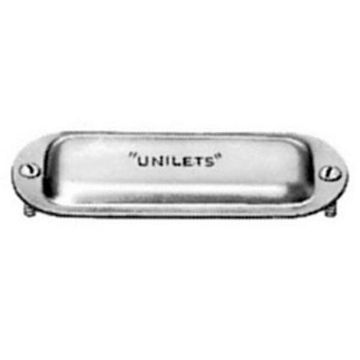

K75 APN
