LC50DCG NER

Name: LC50DCG NER
Brand: Appleton
SKU: LC50DCG NER
Price: 16.20 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

LC50DCG

CBT Inventory

174

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$16.20 / EA

Description

Brand Name

Appleton®

Type

Type LC

Description

NEER™ aluminum threaded conduit bodies, covers and gaskets are used to connect and change direction of conduit runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintece.

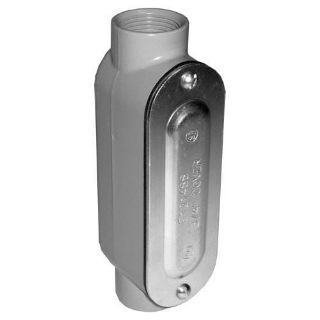

Appleton® NEER™ Conduit Outlet Body, Type LC, 1/2 in Hub, 2 Hubs, 4.35 cu-in Capacity, Thread Connection, Die-Cast Aluminum, Epoxy Powder Coated, 4.82 in L x 1.31 in W x 1.64 in H Dimensions

Application

For use to provide access to the interior of the raceway for wire pulling, splicing and maintece, allows connection of straight and branch conduit runs, 90 deg bends and use with rigid, IMC and EMT conduit applications

Standards

CSA C22.2 No. 18.3/208044 | NEMA FB-1 Rated | UL 514A File No. E53330

Features

Lightweight aluminum facilitates shipping, handling and installing

Specifications

Capacity:	4.35 cu-in
Connection Type:	Thread
Country of Origin:	IN
Dimensions:	4.82 in L x 1.31 in W x 1.64 in H
Finish:	Epoxy Powder Coated
Hub Size:	1/2 in
Material:	Die-Cast Aluminum
Number of Hubs:	2
