Actual Product May Vary From Image

LC75DCG NER

Name: LC75DCG NER
Brand: Appleton
SKU: LC75DCG NER
Price: 21.24 USD
Availability: OutOfStock

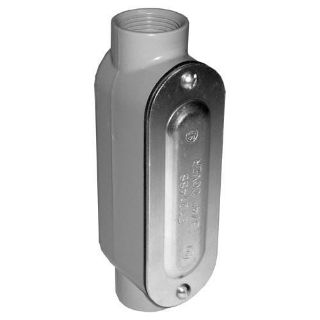

Appleton® NEER™ LC75DCG Type LC Conduit Outlet Body, 1 in Hub, 7.33 cu-in Capacity, Die-Cast Aluminum, Epoxy Powder Coated

Manufacturer: Appleton

Manufacturer part number: LC75DCG

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$21.24

Qty:

Product Details

Brand Name

Appleton®

Type

Type LC

Description

NEER™ aluminum threaded conduit bodies, covers and gaskets are used to connect and change direction of conduit runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

Appleton® NEER™ Conduit Outlet Body, Type LC, 1 in Hub, 2 Hubs, 7.33 cu-in Capacity, Thread Connection, Die-Cast Aluminum, Epoxy Powder Coated, 5.94 in L x 2.68 in W x 1.88 in H Dimensions

Application

For use to provide access to the interior of the raceway for wire pulling, splicing and maintenance, allows connection of straight and branch conduit runs, 90 deg bends and use with rigid, IMC and EMT conduit applications

Standards

CSA C22.2 No. 18.3/208044 | NEMA FB-1 Rated | UL 514A File No. E53330

Features

Lightweight aluminum facilitates shipping, handling and installing
(3) 6 AWG conductors

Specifications

Capacity:	7.33 cu-in
Connection Type:	Thread
Country of Origin:	IN
Dimensions:	5.94 in L x 2.68 in W x 1.88 in H
Finish:	Epoxy Powder Coated
Hub Size:	1 in
Material:	Die-Cast Aluminum
Number of Hubs:	2
