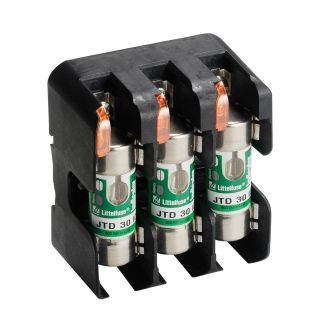

Actual Product May Vary From Image

LFJ60100-3CID LIT

Name: LFJ60100-3CID LIT
Brand: Littelfuse
SKU: LFJ60100-3CID LIT
Price: 193.22 USD
Availability: OutOfStock

Littelfuse® POWR-GARD® LFJ60100-3CID Indicating Fuse Block, 600 VAC, 100 A, Class: J, 14 to 10 AWG Wire, 3 Poles

Manufacturer: Littelfuse

Manufacturer part number: LFJ60100-3CID

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$193.22

Qty:

Product Details

Brand Name

Littelfuse®

Type

Indicating

Alternate Supplier #

Grainger - 6MUN1

Description

The Littelfuse® 600 VAC class J blocks offer generous space savings and enhanced value Over previous generations, such as indication, snap-to-release DIN rail mounting and universal mounting holes.

Littelfuse® POWR-GARD® Fuse Block, Indicating, Series: LFJ, 600 VAC, 100 A, 3 Pole, Class: J, Box Lug Connection, 14 to 10 AWG Wire, DIN Rail Mounting, 4.626 in Fuse Length, 1 in Diameter Fuse, 130 deg C, For Use With: JTD/JTD_ID Series Time Delay, JLS Series Fast Acting Fuse, Thermoplastic, 5.44 in L x 5.36 in W x 2.62 in H Dimensions

Standards

UL Listed | CSA Certified | UL 94 V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Features

Space saving design upto 45% smaller than existing blocks
Universal mounting holes for easy replacement
Only 1-hand is required to release from DIN rail (lock open lock closed)
Spring reinforced fuse clips are standard on 100 A and larger blocks, reinforcing springs are optional on 30 and 60 A blocks
<0.6 mA at 600 VAC leakage current
Lead-free
Phenolic blocks have side barriers for isolation
Indication offered on all versions except 200 to 600 A
DIN rail releasable for all non-knife blade style fuses
Covers available for 100 a and lower to enhance safety

Specifications

Amperage Rating:	100 A
Class:	J
Connection Type:	Box Lug
Country of Origin:	CN
Dimensions:	5.44 in L x 5.36 in W x 2.62 in H
Fuse Diameter:	1 in
Fuse Length:	4.626 in
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	3
Series:	LFJ
Suitable For Use With:	JTD/JTD_ID Series Time Delay, JLS Series Fast Acting Fuse
Temperature Rating:	130 deg C
Voltage Rating:	600 VAC
Wire Size:	14 to 10 AWG
