LL75 OZG

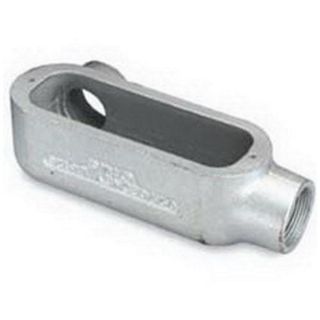

Picture of LL75 OZG
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
LL-75
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$23.26 / EA

Description

Brand Name

O-Z/Gedney

Type

Type LL

Description

O-Z/Gedney Spec 5™ Conduit Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintece.
O-Z/Gedney Spec 5™ Conduit Outlet Body, Type LL, 3/4 in Hub, 2 Hubs, 7 cu-in, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Malleable Iron, Aluminum Enamel/Zinc Electroplated, 5-3/8 in L x 1-5/8 in H

Application

Rigid/IMC Conduit Applications

Standards

ARRA Compliant | UL 514A File No. E18095 | C22.2 No. 18/009795 Certified | Federal Specification A-A-50563 | Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)

Features

  • Smooth, rounded integral bushing in hubs protects conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Form 35™ malleable iron UNILETS™ are high tensile strength and ductility
  • High corrosion resistance, high impact and shock resistance
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • Raintight when an Appleton™ cover and gasket are installed
  • Tapered threaded hubs (NPT)
  • Raintight when used with gasketed covers
  • Internal volume and maximum wire capacity clearly marked on castings
  • Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
  • Malleable iron suitable for use in concrete

Specifications

Capacity:7 cu-in
Connection Type:Tapered FNPT
Country of Origin:MX
Dimensions:5-3/8 in L x 1-5/8 in H
Enclosure:NEMA FB-1
Finish:Aluminum Enamel/Zinc Electroplated
Hub Size:3/4 in
Material:Malleable Iron
Mounting Type:Surface
Number of Hubs:2

Products Specifications

Brand Name
O-Z/Gedney
Connection
Tapered FNPT
Material
Malleable Iron
Size
3/4 in
Type
Conduit Outlet Body

Customers who bought this item also bought

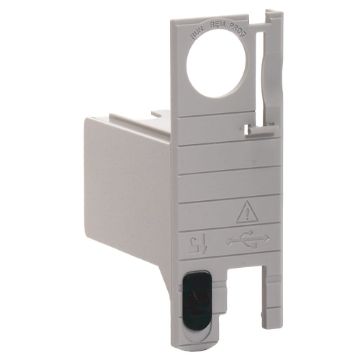

Picture of 1756ESMCAP AB
